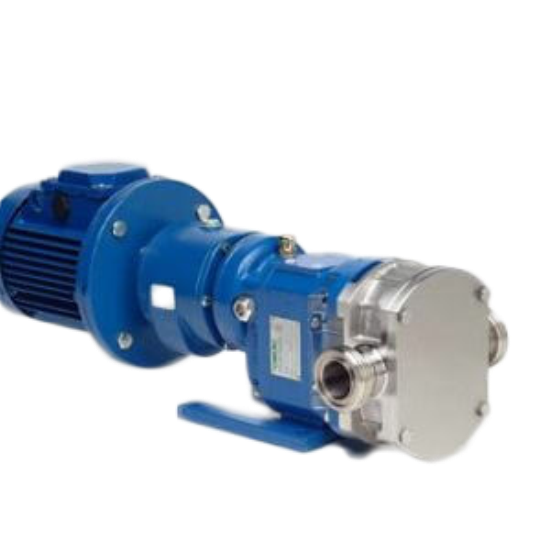

OMAC Series BE Lobe Pump

The BE SERIES Lobe Pumps derives from the well-known B series pump since it shares several of its characteristics. The AISI 316 L stainless steel pump is assembled on a cast iron gear box which has a protective coating in epoxy paint finish. The chamber separating the pump body and gear box avoids any contamination between the pumped fluid and the lubricant. The BE series pumps are simple and robust and are characterised by their Monobloc design. The drive unit, thanks to the hollow shaft and to the rear cover provided with an IEC flange, is directly fixed to the pump by creating a unique compact and light body. The new design, with smooth cover and fixing nut built in the rotors, improves the cleaning (CIP) and sterilisation (SIP) standard.

STANDARD FEATURES

  • Certified hygienic design
  • Maximum reliability



PUMP CAPABILITES

  • Capacity up to 60 m3/h
  • NBR, EPDM, VITON, FEP Gaskets



VERSIONS

  • Standard
  • Aseptic
  • Enlarged Ports
  • Jacketed Front Cover
  • Flushed Seals
  • Special Drives



DOWNLOAD BROCHURE
