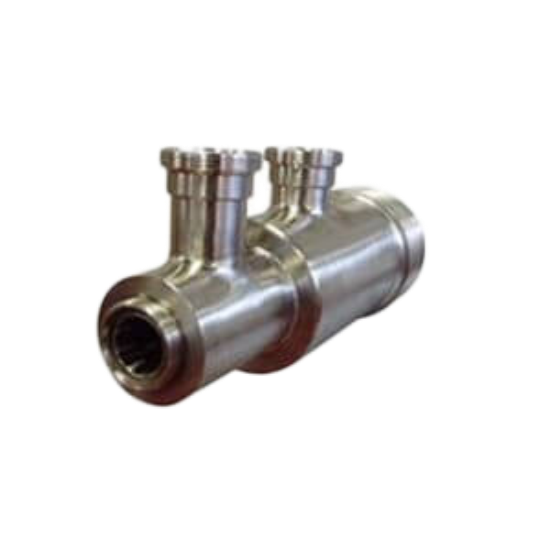

MIXFLO ANNULAR SPACE HEAT EXCHANGER

Anular Space Mixflo Heat Exchanger consists of different concentrical tubes with product’s side checking. An expansion joint is fitted on external jacket. The product to be thermally processed flows inside the central anular space while service fluid flows inside the outer and inner sections. Sanitary Mixflo Anular Space is fully/wholly welded (manufactured)

STANDARD FEATURES

  • Low to High Capacity
  • Stainless steel AISI 304/316 (Other kind of materials are available on request)
  • Product side Ra <0,8 µm
  • Connections DIN-CLAMP-SMS-BS-FLANGE
  • Pressure up to 10 bar  (Higher pressures are available depending on utilized connections)
  • Every exchanger is in accordance with 97/23/CE standards (PED)
